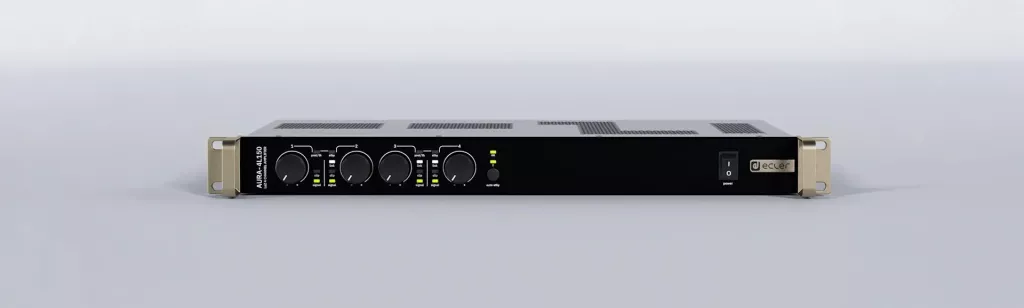

Ecler eLPA2-1400 2x770w @8oh kraftm.

Nánari lýsing

2 analogue audio inputs x 2 powered audio outputs
Ultra light technology
Efficient progressive ventilation system
Rotary input attenuation controls that are easily accessible on the front panel
POWER ON, SIGNAL, CLIP y PROTECT LED indicators.
Efficient short-circuit, overheat and DC signal protection system
Permanently activated built-in anti-clip circuit
Balanced inputs via XLR3 connectors.
Amplified outputs with terminal-type connectors and Speakon® connectors

CHANNELS

Number of output channels

Output connection type

Speakon & binding posts

Output configuration

2 x 1400 WRMS @ 4Ω

Number of input channels

Input connection type

XLR3, balanced

Input configuration

Analogue audio inputs

OUTPUT POWER

Max output power @ 4Ω

1300W

Max output power @ 8Ω bridge mode

2600W

SIGNAL

Input impedance

20kΩ (10kΩ unbalanced)

Frequency response

20Hz – 25kHz (-1dB, -3dB)

THD + Noise

<0,1% @ 1kHz Full Power

SNR

>85dB 20Hz-20kHz @ 1W/4Ω

CMRR

>55dB

ELECTRICAL

AC mains requirement

100-240 V @ 50-60Hz

AC mains connector

AC socket connector (IEC)

POWER CONSUMPTION

Power Consumption (1/3 POWER, @ 4Ω)

1171.0 W

Power Consumption (1/8 POWER, @ 4Ω)

473.0 W

Power Consumption (IDLE)

53.0 W

TECHNOLOGIES

Cooling

Efficient progressive ventilation system, rear to front airflow

PROTECTIONS

AC protection

DC protection

Yes

VHF protection

Shrot-circuit protection

Yes

Clip limiter

Yes

Long term limiter

Thermal protection

Yes

SETTINGS

Attenuators

Front panel knobs per channel

Output settings

Output mode selector: STEREO, PARALLEL and BRIDGE

Gain

0,775V/1V/32dB

Power ON/OFF

Front panel switch & indicator

MONITORING

Signal Present

SP LED (Green) per channel (-40dB)

Cliping

CLIP LED (Red) per channel

Protect

PROT LED (Red) per channel

PHYSICAL

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature
