Nánari lýsing

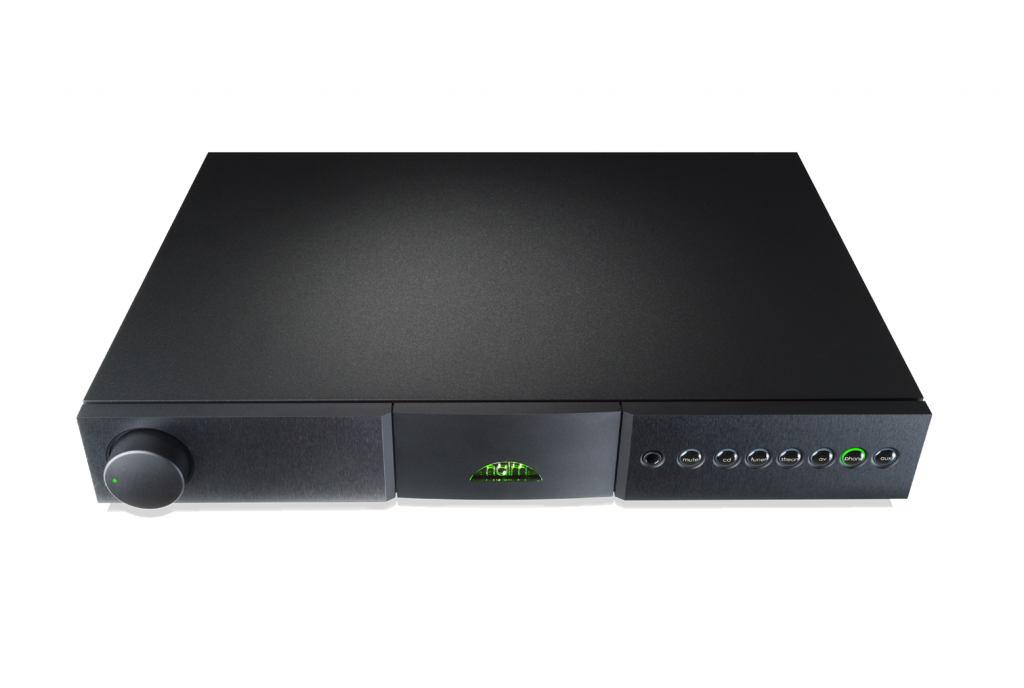

In the six years since the last NAIT integrated amplifiers were released, our research and development team have worked on a range of amplifier improvements.
The result is upgraded power amplifier sections for NAIT XS 3, delivering greater pace and intimacy to their musical delivery – whether it's driving a pair of loudspeakers or your favourite pair of headphones.
The NAIT XS 3 has received significant performance upgrades, including a built-in phono stage, making it a perfect partner for turntables, as well as for streamers, CD players, or any other music source people want to enjoy with the signature Naim sound.
The NAIT XS 3 offers much of the performance of our reference quality SUPERNAIT 3 in a simpler, slimmer package combining a 70W power amplifier with five analogue inputs plus a phono stage. Its high-performance preamplifier stage is as transparent as you would expect from a Naim Audio amplifier, and it also shares the single-ended class-A headphone output of its larger sibling.
The NAIT XS 3 can be upgraded with our external power supplies, power amplifiers and even cabling upgrades to get the best from all sources.
Features
With our typical obsessive attention to detail – all in service of achieving the most authentic musical performance – the NAIT XS 3 benefits from the following features:
- Class A headphone amplification
- Alps Blue Velvet volume control
- Reed relay input selection
- Ceramic insulators for the power transistors
- Galvanically isolated microprocessor control section
- Microphonic-isolating PCB mounts
Technology & Craft
The upgrades in more detail:
- Our R&D team has found a way to more than double the speed of the voltage gain stage, which in turn doubles the rate at which the speaker output stage can react.
- The second gain stage transistors have been optimised, so they no longer need to be shielded by a cascode stage transistor. Removing the cascode means less amplifier stabilisation is required: that doubles the slew rate and delivers another uplift in sound quality.
- The phono circuit topology comprises 3 stages: the gain stage, passive equalisation and final gain and active equalisation. This enables excellent noise performance, extended RIAA equalisation beyond the audio band and great overload headroom.

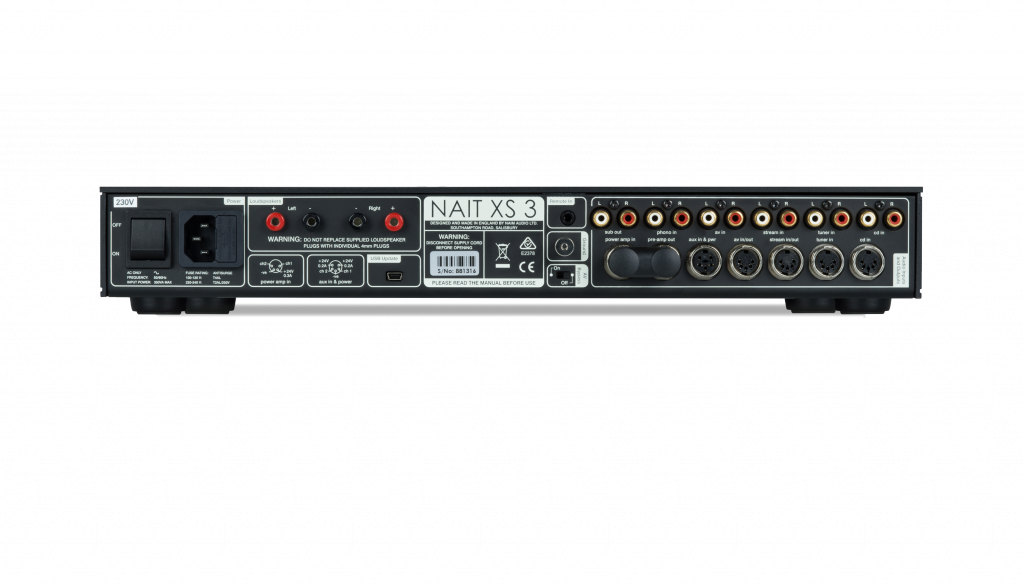

Audio Inputs MM Phono Input via RCA, 47k parallel 470pF input impedance, suitable for 5mV cartridges
Line Level Inputs 130mV sensitivity, 47k input impedance, suitable for 2V
Power Amp In DIN Socket
Audio Outputs Powered Accessory Sockets +24V for Naim phono amplifier
Speaker Outputs 70W per channel into 8 ohms (4mm sockets), 100W per channel into 4 ohms
Line Outputs Variable (level) Pre-amp (DIN), Sub (RCA pair) 775mV, <50 ohms
Line Outputs Fixed (level) AV (DIN), Stream (DIN) 130mV, 600 ohms
Headphone Output 1/4 inch (6.35mm) TRS Socket
Connectivity Updates 1 x USB mini-B
Remote Input 1 x 3.5mm Jack on rear
Finish Case Black powder coated
Front Brushed and black anodised
Physical Shipping Weight 12 kg
Shipping Dimensions 200 x 590 x 500 mm
Weight 8.5 kg
Dimensions (HxWxD) 70 x 432 x 314 mm
Power Power Consumption (max.) 350VA
Mains Supply 115V, 230V; 50 or 60Hz
Power Consumption (quiescent) 16VA
Supplied with Supplied with NARCOM-5 Remote Control, Mains Lead, Link Plug and Safety Manual

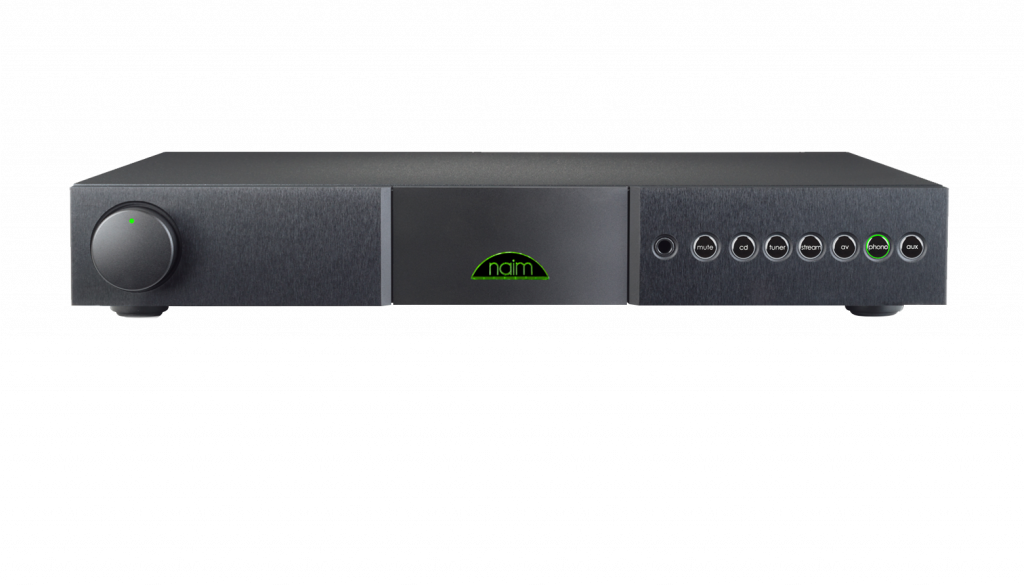

User Control Front Panel Volume control and front panel buttons
Remote Control Infra-Red (RC5)
