Setup Notes
This is not “just another TS style boost,” therefore it should not be setup in that way. e.g. don’t crank the Level and cut the Gain. Start with both at noon and go from there. The Feel (tight/fat/thick) and Mode (clean/clip/dirt) switches will lose effectiveness the lower the Gain control is set.
Further, the higher Level is cranked the more internal distortion can be generated in the last gain stage, and therefore it will add distortion within the Hera coupled with a higher Gain setting. With a lower Gain setting the last stage will remain unclipped, but a huge signal will slam the front end of any amp. This can be too large a signal to achieve your desired sound. e.g. too much saturation due to lack of headroom in the amp’s first stage.
In short, all the controls will interact, and there are countless ways you can run this pedal. Please experiment!
Specifications
Controls: Gain, Bass, Mid, Treble, Level
Switches: Mode (clean/dirt/clip), Feel (tight/fat/thick)

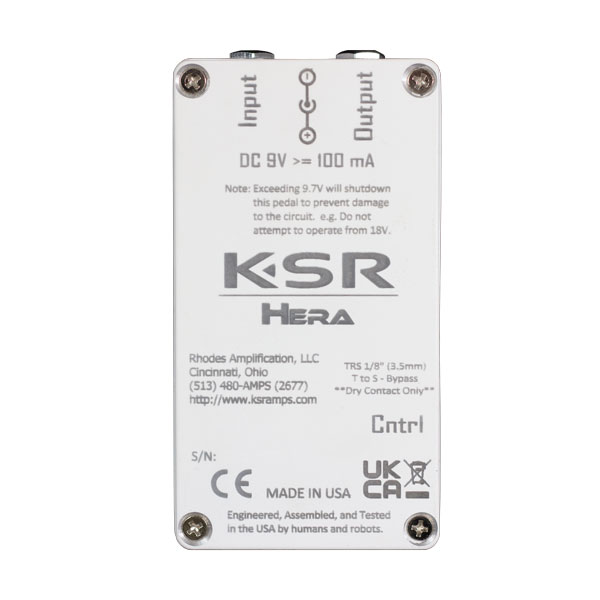

Power: DC 9V with internal booster, >= 100 mA
Size: 4.37″ x 2.37″ x 1.22″
Power Supply
NOTE — Power Supply Not Included! Here’s a compatible (9V, center negative, 500 mA) power supply for the Eros / Ceres:
