Specifications
OVERVIEW / SPECIFICATIONS:

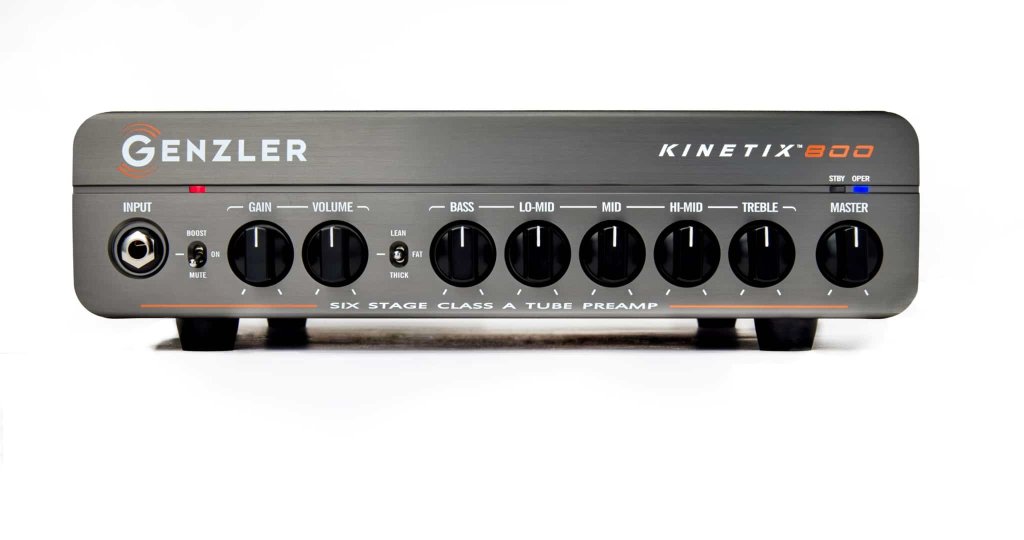

PREAMP – Six Stage, Class A, Tube Preamp (3 x 12AX7 running @ 300V Plate Voltage).
- INPUT– Feeds directly to the first tube stage and has a 1Meg ohm input impedance
- MUTE / ON / BOOST SWITCH — Boost adds 8dB of gain in the 2nd tube stage.
- GAIN / VOLUME CONTROLS
- LEAN / FAT / THICK SWITCH – Sets the tonal foundation of the tube preamp, adjusting the HPF and response curves, along with how a tube amp reacts to various cabinet signatures.
- TUBE DRIVEN EQ NETWORK – Five band all tube driven EQ section
- BASS — +/- 13dB boost/cut shelving curve with a corner frequency of 70 Hz
- LO-Mid — +/- 10dB boost/cut at 250 Hz
- MID — +6/-11dB cut at 575 Hz.
- HI MID — +/- 11dB boost/cut at 2.3 KHz
- TREBLE — + / – 16dB Boost/cut shelving curve with a corner frequency of 5KHz

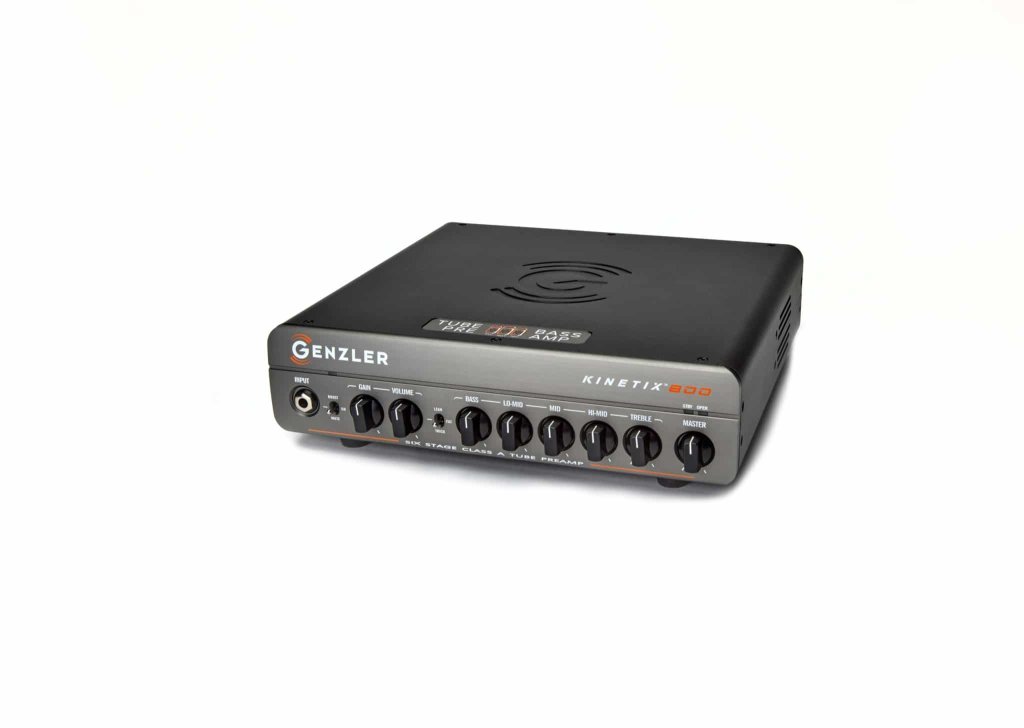

POWER AMP – The KINETIX™ 800 uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. The Voltage Selector Switch changes the high-voltage power supply for the preamp tubes.
REAR PANEL
- Tube Driven XLR Direct Output –
- Mic / Line Switch
- Pre / Post EQ Switch
- Ground Lift Switch
- Effects Loop
- Aux Input
- Tuner Output
- Head Phones
- Impedance Selector Switch
- Dual Speakon® Speaker Outputs
SPECIFICATIONS:
- Power Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
- Minimum Speaker Load: 2.67 Ohms
- Operating Power condition: 100 – 240V, 50/60 Hz
- Dimensions: 3.25″H X 11.25”W X 11.375”D (82.5mm H x 285.75mm W x 288.92mm D)
- Weight: 7.25 LBS (3.26Kg)
SHIPPING DATA:
- Dimensions: 16”L x 14”D x 6”H (392mm x 355.6mm x 152.4mm)
- Weight: 10 LBS (4.50 Kg)
