INPUTS
CH 1: Impedance 500 Kohm/ Maximum Vpp: 10
CH 2: Impedance 500 Kohm/ Maximum Vpp: 10
BALANCED CH2: Impedance 500 Kohm/ Maximum Vpp: 20
RETURN: unbalanced, Impedance 33 Kohm// Max 10Vpp

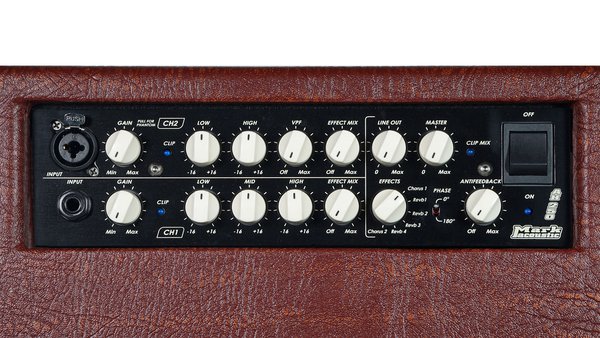

CONTROLS CH1
GAIN: -45dB ¸28 dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level ±16 dB (40 Hz)
MID: Level ±16 dB (600Hz)
HIGH: Level ±16 dB min (6 KHz)
CONTROLS CH2
GAIN: -43dB ¸ 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level ±16 dB (60 Hz)
HIGH: Level ±16 dB min at (5 KHz)
OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz
OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp
SPEAKER: 1x10"
TWEETER: new 1" voice coil tweeter
BASS PORT: rear
IMPEDANCE: 8 ohms
SENSITIVITY: 101 dB SPL
SPEAKER POWER HANDLING: 200W RMS (AES Standard)
AMP OUTPUT POWER: (analog) 250W @ 4 ohm / 150W @ 8 ohm
FREQUENCY RESPONSE: 45 Hz to 20 kHz
CROSSOVER FREQUENCY: 3.5 kHz
ONBOARD DIGITAL EFFECTS
DIMENSIONS
353 x 367 x 367 mm / 13.9” x 14.45” x 14.45”
WEIGHT
10,5 Kg / 23.15 lbs
